Reading guitar sheet music comes down to two questions: which note, and for how long. The height of a note on the five-line staff gives its pitch, and its shape gives its length. Guitar music uses the treble clef, and it sounds one octave lower than written.
This guide covers every symbol in order, from the clef to repeat signs and fingerings. It then compares notation with tab, explains chord symbols, and ends with a practice plan.
plus four spaces, each one a different note
How Do You Read the Staff and Treble Clef?
The staff holds the notes, and the clef names them. Every other symbol builds on these basics.
The Staff
The staff is the set of five horizontal lines and four spaces where notes are written. The higher a note sits on the staff, the higher it sounds.

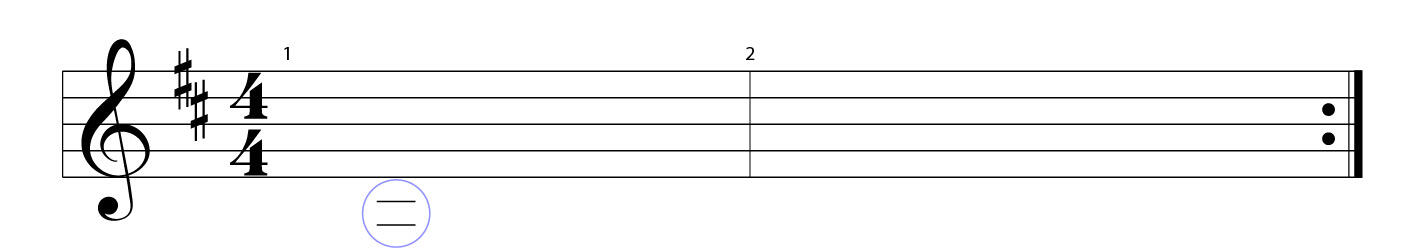

Ledger Lines
Some notes fall outside the staff. On guitar, that means anything below the E on the 4th string, 2nd fret, or above the F on the 1st string, 1st fret. Short ledger lines then appear above or below the staff to extend it.

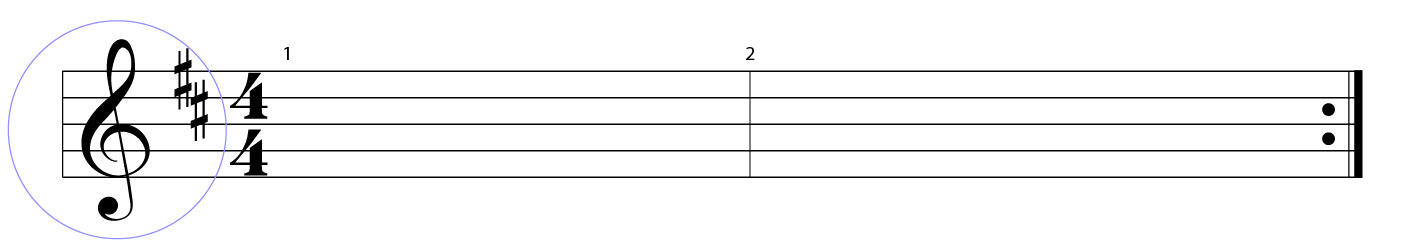

The Treble Clef
The treble clef, or G clef, curls around the second line from the bottom. That line is G, and every other note is counted from it. Guitar music is written one octave higher than it sounds, which keeps most notes on the staff. Some scores show this with a small 8 under the clef.

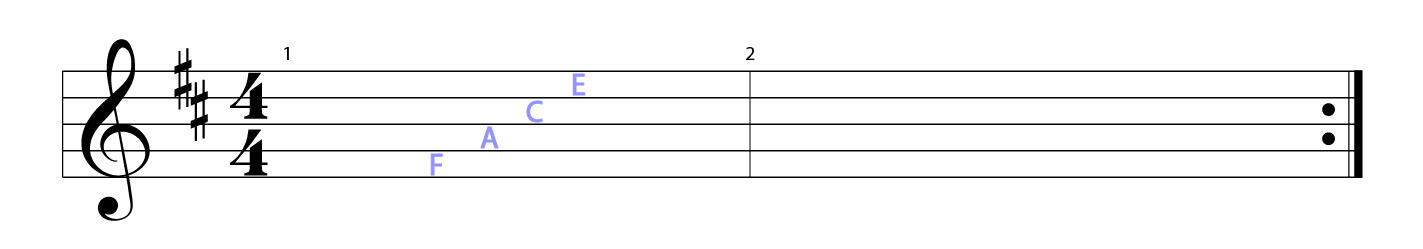

The Spaces: FACE
The four spaces, read from the bottom up, spell F, A, C, E. The word FACE is the easiest way to remember them.
The Lines: EGBDF
The five lines, from the bottom up, are E, G, B, D, F. Most players remember them as “Every Good Boy Does Fine.”
Next, link the staff to your open strings. The open G string sits on the second line, the B string on the middle line, and the high E in the top space. The low E hangs below three ledger lines.
What Do Key Signatures and Accidentals Tell You?
Sharps and flats change a note by a half step, which is one fret on the guitar. They show up in two places: at the start of each line, and right before a single note.
Key Signatures
The key signature sits just after the clef. It lists the sharps or flats that apply all the way through the piece, so the composer doesn’t repeat them on every note. The example shows two sharps, F♯ and C♯, which is the key of D major.

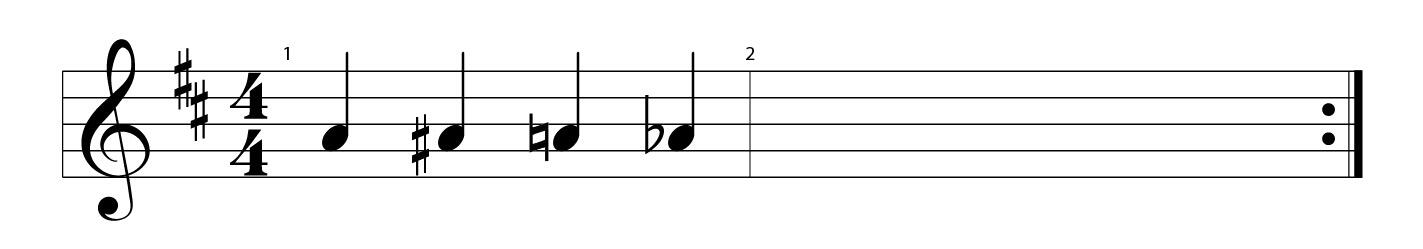

Accidentals
An accidental changes a single note that falls outside the key. A sharp (♯) raises it a half step, a flat (♭) lowers it a half step, and a natural (♮) cancels either one. An accidental lasts until the end of its measure.
How Do You Read Rhythm on the Staff?
Pitch tells you where to put your fingers. Rhythm tells you when to play and how long to let each note ring.

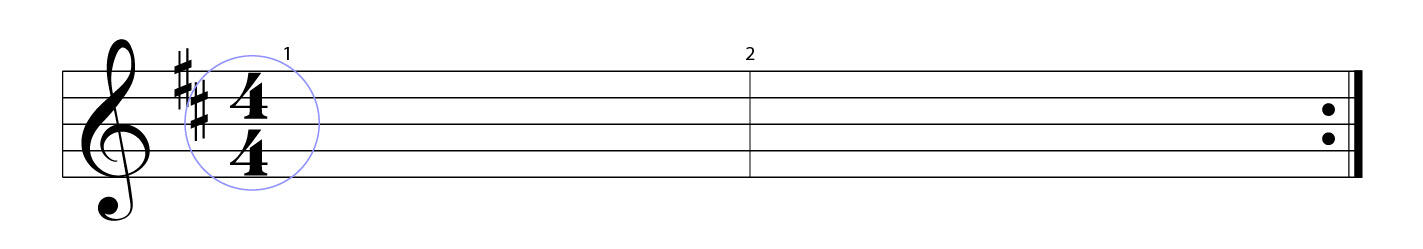

Time Signatures
The time signature is the pair of numbers just after the clef and key signature. The top number tells you how many beats are in each measure. The bottom number tells you which note gets one beat. In 4/4, the most common time signature, you count four quarter notes per measure.

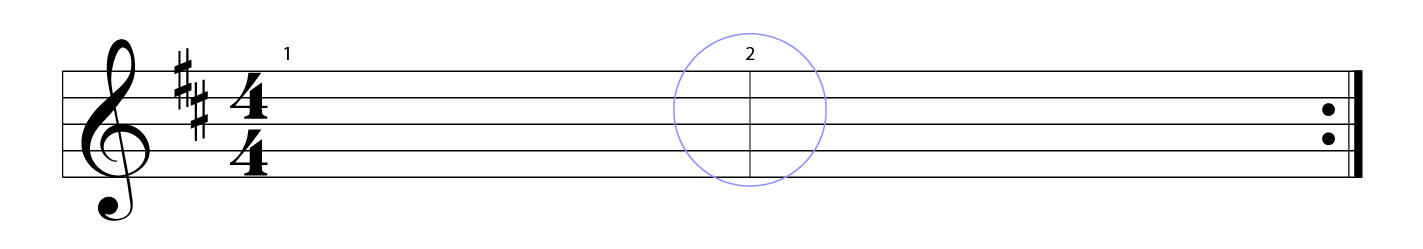

Bar Lines and Measures
Vertical bar lines divide the staff into measures, also called bars. Each measure holds the number of beats the time signature asks for.

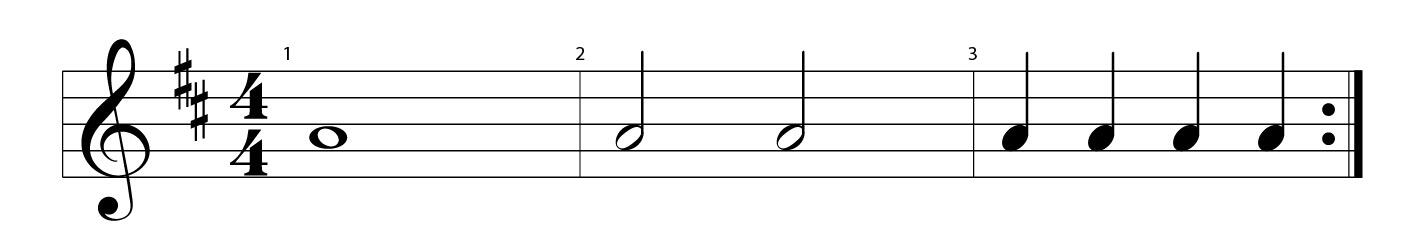

Note Values
In 4/4, a whole note lasts 4 beats, a half note 2 beats, and a quarter note 1 beat. Shorter notes add flags or beams. An eighth note lasts half a beat, a 16th note a quarter beat, and a 32nd note an eighth of a beat.

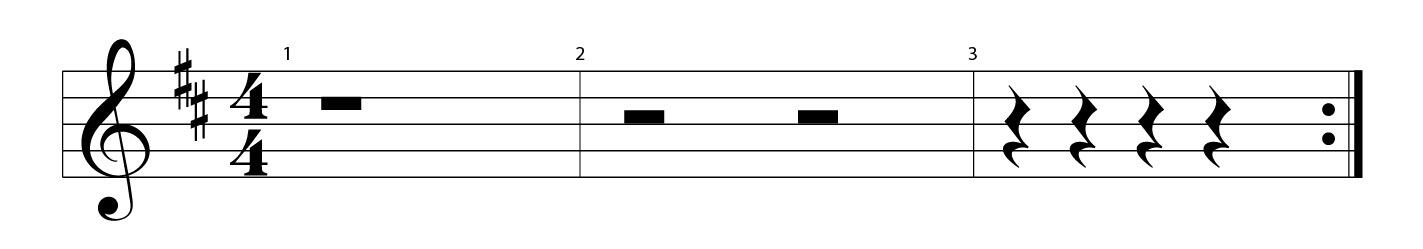

Rests
Rests mark silence, and each note value has a matching rest. A whole rest fills 4 beats in 4/4, a half rest 2 beats, and a quarter rest 1 beat.

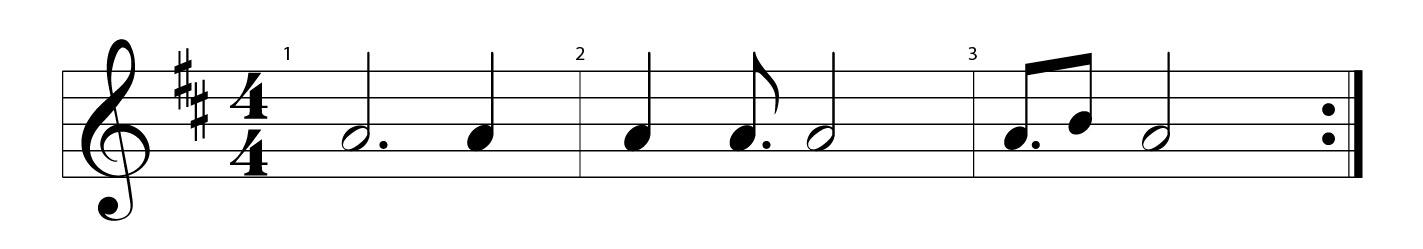

Dots
A dot after a note adds half of that note’s value. A dotted half note lasts 3 beats instead of 2, and a dotted quarter note lasts 1½ beats.

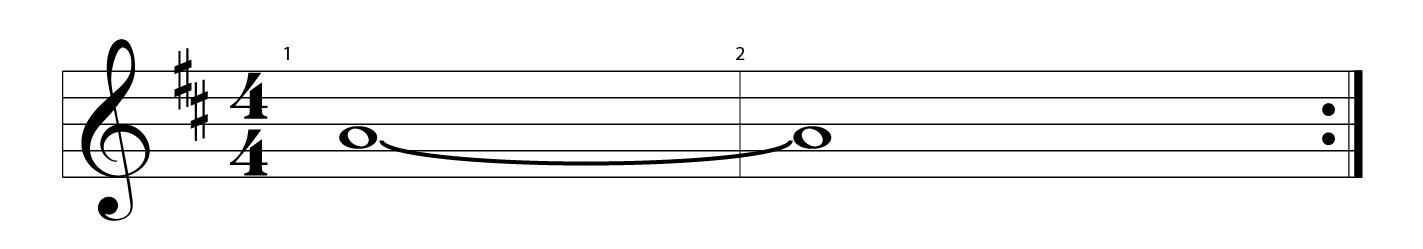

Ties
A tie is a curved line joining two notes of the same pitch. You play the first note and hold it for the value of both. Ties often stretch a note across a bar line.
Which Guitar-Specific Symbols Should You Know?
These markings tell you how to play a passage, or where to go next. Guitar scores use them often.

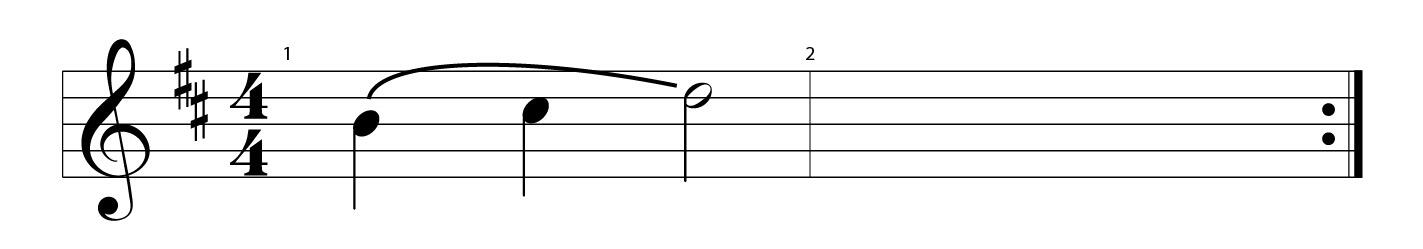

Slurs
A slur looks like a tie, but it links notes of different pitches. It means you play them smoothly, with no break between them. On guitar, you pick the first note only. A slur up to a higher note is a hammer-on, and a slur down to a lower note is a pull-off.

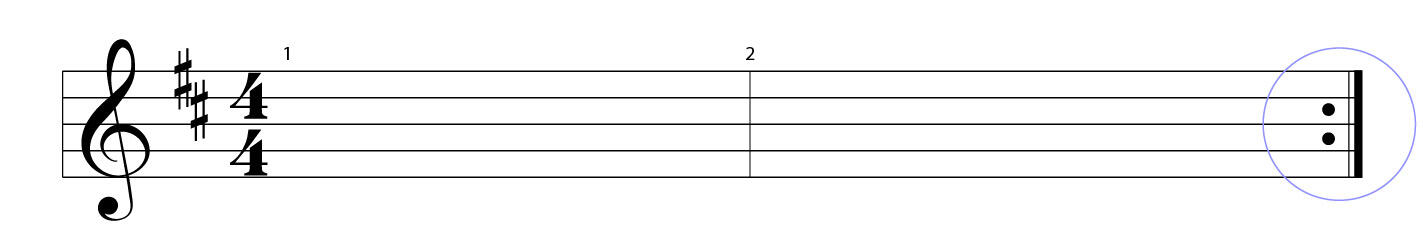

Repeat Signs
A repeat sign is a double bar line with two dots. Dots to the right of the bar line open a repeated section, and dots to the left close it. When you reach the closing sign, go back to the opening one and play the section again. If there is no opening sign, go back to the beginning.

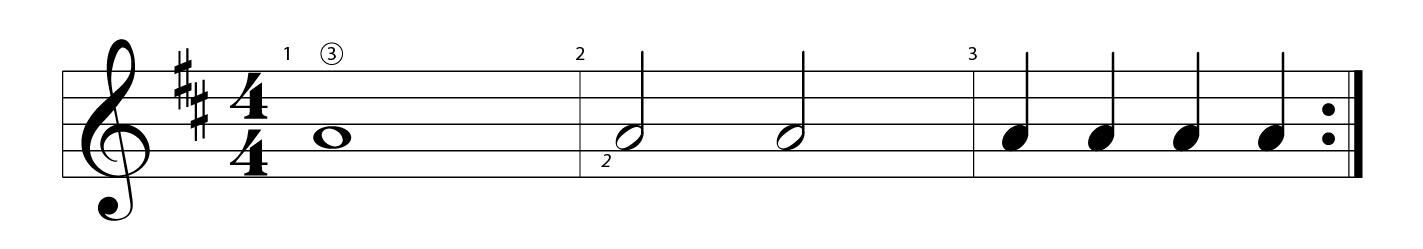

String and Finger Indications
A number in a circle tells you which string to play, from 1 for the high E to 6 for the low E. A plain number next to a note names the fretting finger: 1 index, 2 middle, 3 ring, 4 pinky. Letters such as p, i, m, and a show picking-hand fingers.
How Is Tab Different From Standard Notation?
Tablature, or tab, uses six lines instead of five, one for each string. The top line is the thinnest string, the high E, and the bottom line is the low E. A number on a line tells you which fret to press on that string, and 0 means an open string.
Tab shows exactly where to play, which standard notation often leaves open. On its own, though, it usually doesn’t show rhythm. That’s why many scores print both, with tab directly under the staff.
Ready to go further? Our step-by-step lesson on how to read guitar tabs covers bends, slides, and other tab symbols.
How Do You Read Chord Symbols?
Songbooks and lead sheets often print chord names above the staff. A capital letter on its own means a major chord, and a small “m” means minor. The symbol only names the chord, so you choose how to voice and strum it.
- C: C major, built from C, E, and G
- Am: A minor, built from A, C, and E
- B°: B diminished, built from B, D, and F
- C+: C augmented, built from C, E, and G♯
Some scores add chord diagrams as well. In a diagram, vertical lines are strings and horizontal lines are frets. An X above a string means don’t play it, and a 0 means play it open.
How Should You Practice Reading Guitar Music?
Basic reading comes quickly, but fluent sight-reading takes years. Guitarist Gretchen Menn suggests a 10-minute daily drill, adding one note at a time.
- Learn the open strings on the staff. Find E, A, D, G, B, and E in written form first.
- Add one string at a time. Name each note aloud as you play frets 0 to 6 on the low E string.
- Clap the rhythm first. Count the beats out loud before you add the notes.
- Read slowly with a metronome. Keep the pulse steady, however slow.
- Review before you move on. Start each session with a quick recap of the day before.
But when it comes to understanding the intricacies of a composition or documenting and sharing our ideas, nothing beats the ability to read and write music on the stave.
Robbie Calvo, Nashville session guitarist and educator, for Yamaha Music
When a score prints both, read the rhythm from the staff and the fret numbers from the tab. Over time, cover the tab and see how many notes you can name from the staff alone.
